fdy polypropylene multifilament spinning machine/ extrusion line

  • 1 - 1 Sets
    $95,000.00
  • >=2 Sets
    $94,000.00
Model Number:
JM161
No.of spindles:
6
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$95,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Power(W):
180KW rated
Dimension(L*W*H):
6000x5500x7000MM
Weight:
15tons
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
Place of Origin:
Shandong, China
Brand Name:
JIAMEI
Application:
Spinning Line
Certification:
ISO9001
Type:
Spinning Production Line
Automatic:
Yes
Spinning Method:
yarn spinning drawing winding line
Production Capacity:
97%
Applicable Industries:
Manufacturing Plant
Name:
fdy multifilament spinning machine
Product name:
polypropylene multifilament spinning line
Scope of application:
Multifilament yarn making
capacity:
2 tons for 1000d, 24hours
screw:
90mm
yarn size:
300-6000d
yarn tenaicty:
6-7g/d white yarn, 5.5-6.5g/d dyed yarn
no of bobbin:
6bobbins, one pos
warranty time:
12 months
Other name:
multifilament spinning machine
Supply Ability
Supply Ability:
60 Set/Sets per Year multifilament spinning machine
Packaging & Delivery
Packaging Details
fdy polypropylene multifilament spinning machine/ extrusion line
1. wooden case for spares
2. pallets, plastic film outside for main parts
Port
qingdao/ shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 To be negotiated
Product Description
model
JM181-90-1
Voltage
380V, CUSTOMIZED
machine size
4500*5500*6500(mm)
Application
pp multifilament spinning line n
weight
15 tons
Certification
CE, ISO
Power
180kw rated
Warranty
12 months
Item Name
fdy fully drawn yarn machine
Function
webbing, rope , sling , sewing, filter, aty yarn etc
yarn size
300-600d, 600-4500d more
MOQ
1 set, or spares
bobbin size
¢108*¢94*115(or 230))
dia of screw
90mm
capacity
one ton per day for 500d
Port
qingdao /Shanghai

multifilament spinning machine

fdy  multifilament spinning machine is for spinning drawing fdy pp multifilament thread yarn, Filament size from 150D to 4500D.
1) low power consumption, 1-1.2kw/1kg yarn
2) Fast asscmble and trainning, professional engineer 10-15days
3)Reasonable design to make high tenacity yarn 7-7.5g/d
4) Easy operate, PLC control + touch screen
5)it require the building roof 7m
The pp multifilament is used for webbing, rope, filter, sewing thread, concrete fibre etc

Detailed Images

fdy polypropylene multifilament spinning machine

1) pp material get into hopper through automatic loadind units, with pp and auxiliary like color masterbatch and UV etc
2) extrusion part, pp melt in screw, this part including metering pump etc
3) melting pp flow into spinning beam, then get into spinneret

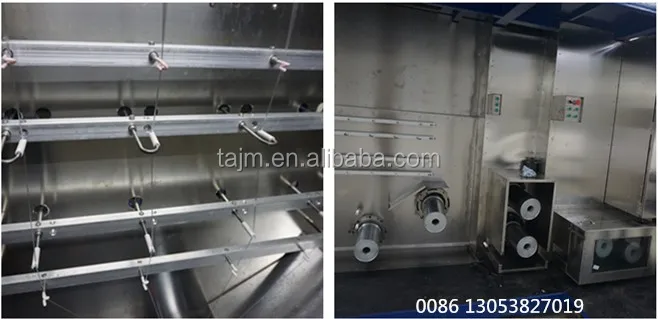

4) yarn will be shaped in spinneret, then air cooling window, two layers to make the wind blow evenly
5) oil device from two sides to add oil to make yarn smooth and bright
6) 4 groups hot godet +1 heating chamber to make high ratio, tenacity will be 7-7.5g/d

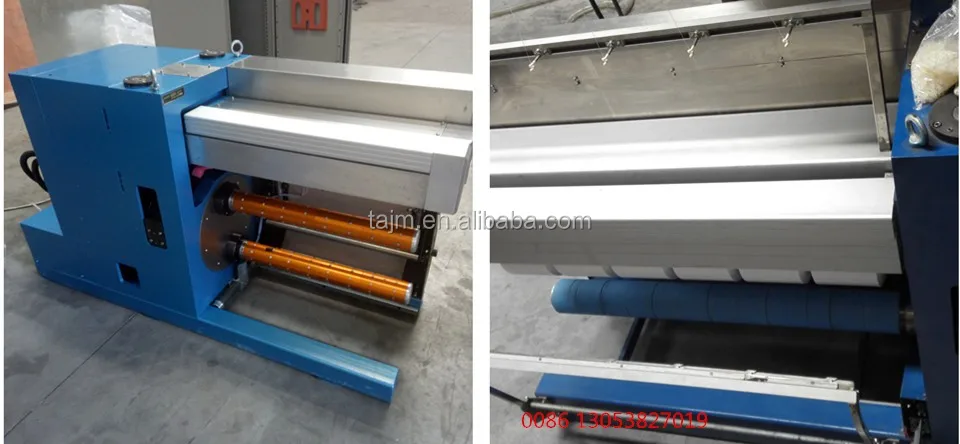

7) automatic winding system, save labor cost

fdy polypropylene multifilament spinning machine

We also offer client the spares like spinneret( die), intermingle( for airjet), metering pump, hot godet, automatic pp fdy winder, plastic traverse, ceramic hook( yarn guide hook), heating ring

fdy polypropylene multifilament spinning machine

1) all in one steel frame, no need client to build new building

2) three floors contrete floor, it's suitable for multi-sets, save space

3) three floors steel type, can place several sets at a same time

finished yarn

fdy pp yarn spinning machinefdy pp yarn spinning machine

1)webbing and belt, jacquard loom yarn, bag handle 2) rope,cordage, twine and gift handle and shoe lace 3) reinforced concrete fiber, cement building fibre 4)sewing thread yarn for woven bag and sacks 5) chemical filter cloth, filter  6)zipper

Our Company

Taian jiamei machinery technology co.,ltd have good experience of 40 years in machinery manufacturing and development.

Our main products including fdy pp multifilament spinning machine, polyester multi yarn spinning machine, BCF carpet multifilament spinning machine. All kinds of plastic filament extruding machine,fdy drawing machine for pp multifilament yarn extruder,fdy pp yarn spinning machine,fdy pp yarn spinning machine.  so far , many customers have gain very good economic benefits with our equipment.  welcome to visit!

Our Service

fdy polypropylene multifilament spinning machine

1. Come engineer help set up machine ,take 10 days for assemble and trainning . 3-4 days for set up,5-6 days for training .
2. The customer should prepare 3-5 workers for learn and operate the machne .
3. With online device ,our team is 24hr at your service .
Warranty: One year. In case of  damages occured due to the quality problems of the equipment, the seller shall be responsible for repair or replacement of the damaged parts and all the costs shall be borne by the seller. Within one year after the acceptance test of the equipment, the seller will continuously pay attention to the equipment, offer their advice on correct operation of the contracted equipment.

Packing & Delivery

fdy polypropylene multifilament spinning machine

We packed the fdy pp yarn spinning machine with wooden case/ pallets/ nude, generally it need 1*40HP+ 1*20GP


1. main parts with pallets

2. spares in wooden case

FAQ

fdy polypropylene multifilament spinning machine

1.What's the different sizes of the bobbin we can choose:
ID110*OD125*H200mm
ID74*OD87*H270mm
ID73*OD85*H270mm
ID110*OD125*H230mm
ID94*OD108*H153mm
ID94*OD108*H230mm.
2.How long it takes to set up the machine?
About7-10days,The customer need to prepare bobbins ,power source ,lift ,oil for yarn and heating transfer heating oil . need a workshop height of 7.5 meters.
3.what's the air jet you can do from the line?
20-30, this line is equipped with big intermingle, special design to get more points
