hdpe fish net yarn extruder line machine hot water bath

  • >=1 Sets
    $4,200.00
Model Number:
JM 70*30
Lead Time:
Quantity(Sets) 1 - 2 >2
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year, 12 Months
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Place of Origin:
Shandong, China
Brand Name:
JIAMEI
Voltage:
380V/220V
Application:
Wire
Weight:
350kg
Certification:
ISO/CE
Screw Design:
Single-screw
Plastic Processed:
PP
Dimension(L*W*H):
3500X600X1100mm
power:
110kw
yarn size:
0.3mm
yarn strength:
6g/d
machine paint:
bule
material:
virgin or recycle
process type:
extruding
products:
filament
name:
pp monofilament extrusion machine
Automatic Grade:
Automatic
Power(W):
30KW
Supply Ability
Supply Ability:
14 Set/Sets per Year hot water tank
Packaging & Delivery
Packaging Details
hot water tank cylinder for plastic danline yarn extruder monofilament extrusion
1. normal, wodden carton
2. according to client's request
Port
Qingdao/shanghai
Lead Time :
Quantity(Sets) 1 - 2 >2
Est. Time(days) 20 To be negotiated
Production process

Extruder machine have many different type


-PP/HDPE monofilament yarn extruder
-Raffia film extruder/split film extruder
-PP/HDPE danline extruder
-PET brush broom yarn extruder
-Nylon monofilament extruder
PP HDPE fishing net monofilament yarn winder for extruder
hot water tank/air heating oven for monofilament yarn extruder machine
hot water tank for extruder machine

Mchine details

hdpe fish net yarn extruder line machine hot water bath

1.Tank dimension: 3700mm (L) x800mm (W) x 150mm (H)

2. Type & Method : Hot water system

3. Material: Bath Stainless steel

4. water temperature:90-100


5. heating solution : electric heating +steam

hdpe fish net yarn extruder line machine hot water bath

Technical parameter
Hot water bath dimension
3500X600X1100mm
Hot water bath power
30kw
Hot water heating solution
    eletric heating & steam
Request for water
natural water
Yarn stretch time
  8-10times
  Yarn tenacity
5-8g/d
Yarn size
 0.03g/m-1g/m
Machine capacity
50-100kgs/hr

hot water bath stretch heating water tank for plastic extruding machine

Complete Line

hdpe fish net yarn extruder line machine hot water bath

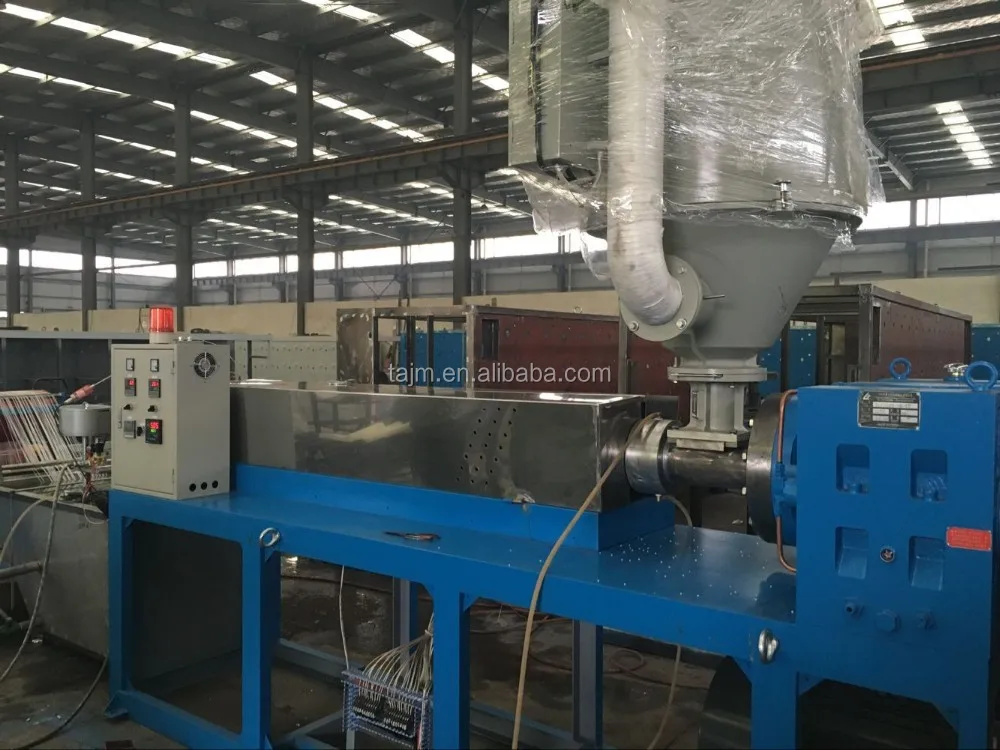

Extruding head part:


The screw is the most important parts of extrusion line , we adopt the best screw from China , make the pp&pe material more better plasticizing .with automatic material feeding system and drier device .

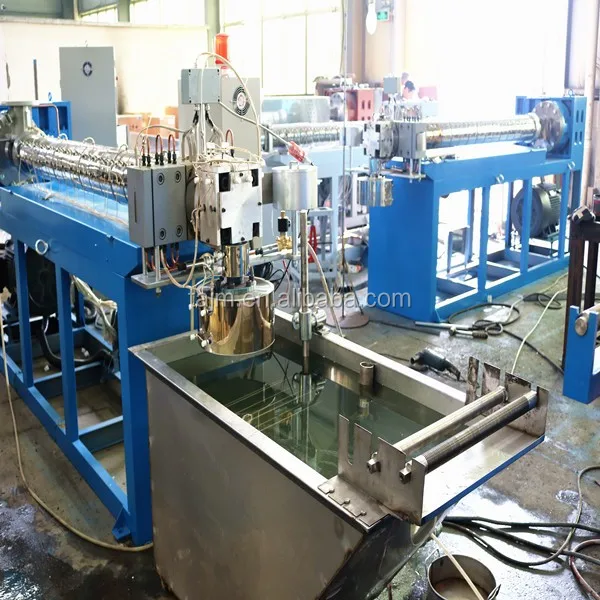

Hot water tank .

Our machine adopt thicker stainless steel ,  the quench tank is adjustable for position left and right or height .the hot water tank use special insulate material , keep temperature very well ,save power cost for production .

Stretch roller .


We have different roller design for different yarn, 5 roller or 7 roller . with rubber cover or just stainless steel material .  the transmission adop gear type  make sure the roller running stable no bounce up and down . roller bounce will lead to yarn thickness no evenly .


Heating oven .

The heating oven use thicker material ,has very good thermal insulation performance and keep inside temperature stable .

Winder .

The winder have Oliver shape , H bobbin type , star type etch for different yarn usage . motor very durable .

Production pictures


After-sales service


1.Come engineer for machine set up
2. support with operating training
3. spare parts supply immediately
